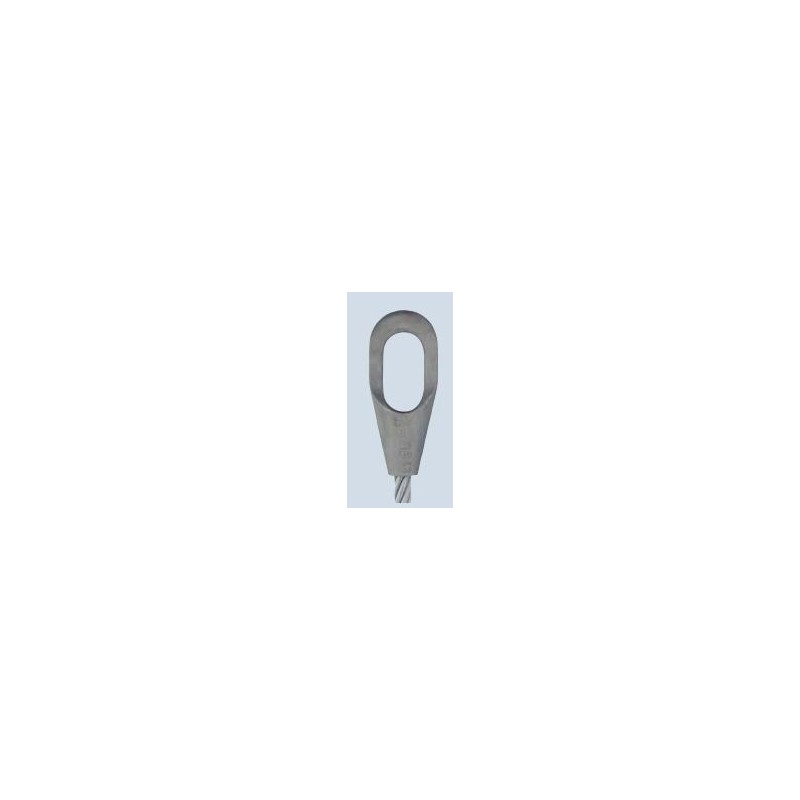

Zakończenie linowe kabłąkowe forma A zgodne z DIN 83313
Numer katalogowy:
![]()
Forma A
Materiał: GS -45.1
Wykonanie: surowe
| Udźwig w kg | Rozmiar | Do liny o średnicy Ø w mm | Wymiary w mm | Waga w kg | Nr artykułu | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| b | c | d1 | d2 | e | f | h | l | |||||
|
1600 2500 3150 |
1,6 2,5 3,0 |
12-14 14-18 16-20; |
37 45 50 |
12 14 16 |
17 20 22 |
55 62 69 |
76 89 98 |
19 24 26 |
155 182 202 |
15 19 21 |
0,7 1,2 1,5 |
20201800015016 20201800015017 20201800015018 |
|
4000 5000 6300 |
4,0 5,0 6,0 |
18-22 20-24 22-28 |
54 60 67 |
18 20 23 |
24 27 30 |
76 85 94 |
106 117 131 |
30 34 38 |
220 245 275 |
24 27 30 |
2,0 3,1 4,2 |
20201800015019 20201800015020 20201800015021 |
|
8000 10000 12500 |
8,010,0 12,0 |
26-30 28-34 32-38 |
73 80 89 |
26 29 32 |
33 36 40 |
103 112 125 |
143 160 179 |
42 45 51 |
300 330 370 |
33 36 41 |
5,8 8,0 11,0 |
20201800015022 20201800015023 20201800015024 |
|
16000 20000 25000 |
16,0 20,0 25,0 |
36-44 40-50 44-54 |
100 110 120 |
35 40 43 |
45 50 55 |
140 156 173 |
200 224 246 |
56 62 69 |
415 460 505 |
46 50 55 |
15,0 20,0 27,0 |
20201800015025 20201800015026 20201800015027 |
|
31500 40000 50000 |
32,0 40,0 50,0 |
50-62 58-72 62-76 |
132 150 165 |
48 54 60 |
60 68 75 |
188 212 235 |
270 308 339 |
76 85 94 |
555 630 695 |
61 68 75 |
35,0 50,0 67,0 |
20201800015028 20201800015029 20201800015030 |
